Description

Learn how FortiGate Block Risky Firmware Updates after license expiry with rules, restrictions, and secure policies to ensure safe upgrades and deployments.

Scope

This guide explains how FortiGate firmware upgrades behave after a support contract expires under Block Risky Firmware Updates. It is useful for both beginners and network administrators.

You will learn which upgrades are blocked, which are allowed, and how license status affects firmware updates under Block Risky Firmware Updates, including its impact on upgrade behavior and system control.

Solution

What Happens When Support Contract Expires?

When a FortiGate support contract expires:

  • Major and minor firmware upgrades are blocked
  • FortiGuard upgrades become unavailable
  • Only limited upgrade actions are allowed

This behavior is enforced directly in the GUI.

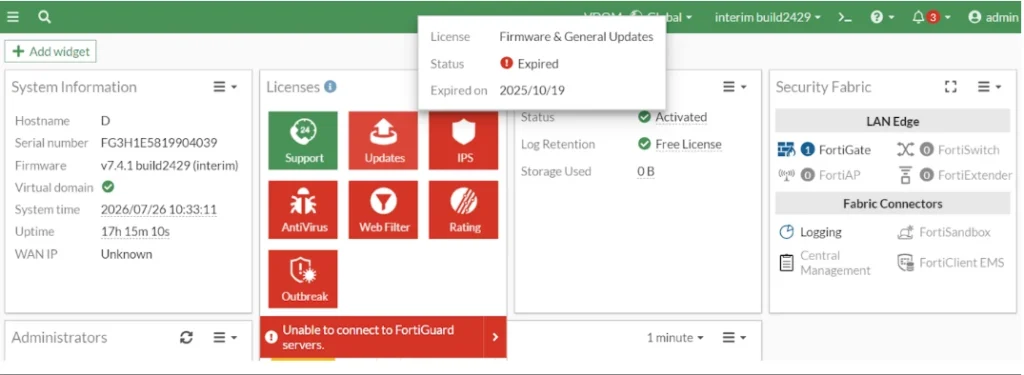

Check Support Contract Status

To verify license status:

Go to:
Dashboard → Status → Licenses Widget

How to Block Risky Firmware Updates Instantly - Support Contract Status

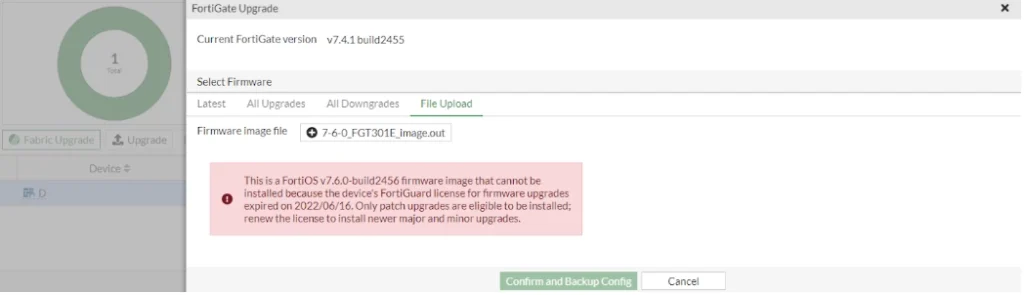

Major & Minor Firmware Upgrades (Blocked)

If the license is expired:

  • You cannot upgrade to a higher major version
  • You cannot upgrade to a higher minor version
✔ Example:
  • ✖ 7.4.1 → 7.6.0 → Blocked
How to Block Risky Firmware Updates Instantly Firmware Upgrades How to Block Risky Firmware Updates Instantly
Patch Upgrades Still Allowed

FortiGate allows patch-level upgrades even without support.

Example:
  • ✔ 7.4.1 → 7.4.3 → Allowed

This ensures critical security updates remain available.

How to Block Risky Firmware Updates Instantly Patch Upgrades How to Block Risky Firmware Updates Instantly
Active FortiGate license showing account ID, company, contract, and user ID
Downgrade is Allowed

You can downgrade firmware even with an expired license.

Example:
  • ✔ 7.4.1 → 7.2.4 → Allowed
How to Block Risky Firmware Updates Instantly Downgrade is Allowed How to Block Risky Firmware Updates Instantly
Improved Enforcement (v7.4.2 and Later)

From FortiOS 7.4.2, behavior is stricter.

Now FortiGate checks:

  • License expiry date
  • Firmware GA (General Availability) release date
Key Rule:

If the license expired before the GA release, upgrade is blocked.

Example:
  • License expired: 2022
  • Firmware GA: 2023
  • Result: ✖ Upgrade blocked

Even minor upgrades may fail in this case.

Important Notes / Tips
  • Always check license before upgrading
  • Renew support contract for major upgrades
  • Patch updates remain available for security fixes
  • GUI enforces restrictions automatically
  • Plan upgrades before license expiration
FAQ

You can only install patch updates, not major or minor upgrades.

Your support contract has expired, and FortiGate restricts upgrades.

Yes, downgrades are allowed even without a valid contract.

Yes, patch upgrades are allowed for security purposes.

Go to Dashboard → Status → Licenses.
